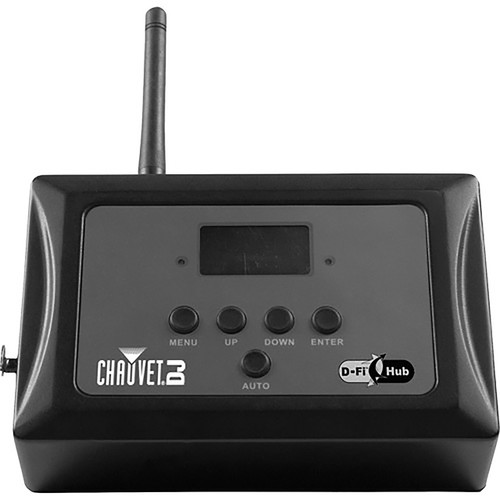

The D-Fi Hub from Chauvet is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. This unit operates on a 2.4 GHz frequency range and includes an auto function which finds the best frequency and syncs the units effortlessly. Which can be wirelessly synchronized to an unlimited number of D-Fi-ready fixtures simultaneously and operate them using the simple navigation on the OLED digital display.
Features
- DMX connectors: 3-pin XLR
- Operating Frequency: 2.412 to 2.484 GHz
- Antenna Connector: RP-SMA
- Maximum Unobstructed Distance: 656' (200 m)
- Input Voltage: 9 VDC, 500 mA
- External power supply: 100 - 240 VAC, 50/60 Hz
- Power Consumption: At 120 VAC, 60 Hz: 4.0 W, 0.1 A,
- At 230 VAC, 50 Hz: 4.0 W, 0.1 A
- Approvals: CE, FCC, RTTE
- Mounting Options: Built-in hook and loop fastener strap,
- Dimensions: 4.0 x 3.2 x 1.6" (102 x 82 x 41 mm)
- Weight: 1.2 lb (0.6 kg)
- Keyhole mounting holes,
- M10 and M12 threaded holes for direct mounting to truss.
